Intro
Towards the end of 2023, Netflix put out a series of tech talks, including one that gave an overview of their data engineering stack. I think many of us are curious about how Netflix manages their data infrastructure, so I decided to write this article. The notes below are my takeaways from watching the talk.
Scope
Netflix offers a wide range of data analytics tools, covering almost every aspect of data engineering. Instead of exploring each tool, the talk focuses on a typical pipeline implementation and highlights some key technologies. In the next section, we will see how Netflix handles batch pipelines at a high level.
Batch
Netflix's general batch pipeline has four steps: (1) the transform logic implementation, (2) ensuring quality, (3) scheduling jobs, and (4) managing the data.
The transform
Internally, thousands of Apache Iceberg data tables cover all aspects of Netflix's business. All the batch pipelines are built with Apache Spark, which offers first-class support for SQL, Python, and Scala. Users can choose any language that best suits their use case.
If users choose SQL, there is a tool called Netflix big data query UI that can help make their lives easier. The tool supports cool features like documenting the table involved in the query, auto-completing, and a single entry point for many engines/backends: Spark, Trino, Druid, or Snowflake.
Netflix also allows users to register compute resources when running extensive jobs like backfilling. A UI tool called go/boost serves this purpose.
Data Quality
Regarding unit tests, Netflix uses native unit test libraries (PyTest or ScalaTest) and the Spark-specific unit test library. For testing purposes, Netflix developed Dataflow Mock Generation — a tool that generates mock data based on the data in the warehouse.
For the data audits, Netflix employs the WAP (Write-Audit-Publish) pattern. They first write the data to a hidden Iceberg snapshot and then audit it using an internal data auditor tool. If the audit passes, this snapshot is exposed to the user. Leveraging Iceberg in this pattern helps Netflix avoid copying data during the audit.
You can read more about the WAP pattern using the Iceberg branch from
’s article
Scheduling
Netflix developed a solution called Maestro to serve workflow scheduling. It handles an impressive 70,000 workflows and 500,000 job steps every day. With Maestro, users can set job frequencies using event-based triggers or a time-based scheduler. Workflows can be defined using YAML or Python. Netflix offers many standard steps, similar to Airflow Operators, such as Spark Jobs, Data Audits, and Email Sending. If a custom step is needed, users don't have to dive into the low-level APIs of specific stacks. Instead, Netflix provides a wrapper API that allows access to various engines through a single interface. This design means users don't need deep knowledge of the different APIs and their unique semantics.
Data Management
Netflix built the Cost Insights Dashboard, which monitors metrics like compute and storage costs. The dashboard can be broken down by team, organization, and platform.
Another tool worth mentioning is the Aggressive Janitor, which supports data management tasks such as cleaning up unused data or enforcing data retention policies.
The following sections will describe the real-time pipeline implementation at Netflix.
Real-time
Streaming Application
At Netflix, Apache Flink has become the standard for building real-time pipelines. The real-time data platform offers everything users need to develop their Flink applications. The platform will handle nearly everything, from the observability and alerting to Flink’s job configuration.
Source and Sink
Netflix engineers built a tool called Keystone that abstracts away stream destination details. Instead of specifying the destination, the application can output the data to Keystone. Behind the scenes of Keystone, there is a Kafka topic that receives the data, and a Flink application will route the data to the configurable destination, such as another Kafka topic, Iceberg table, or Apache Druid.
Backfilling
Keystone supports using Iceberg tables as Keystone sinks and leveraging that for the backfill source.
Observability
Netflix developed a tool called Mantis, which can run ad-hoc queries against raw data events. Users can configure a Mantis agent to listen to the raw stream; the agent will receive the user’s query and investigate or debug the stream in real-time.
Outro

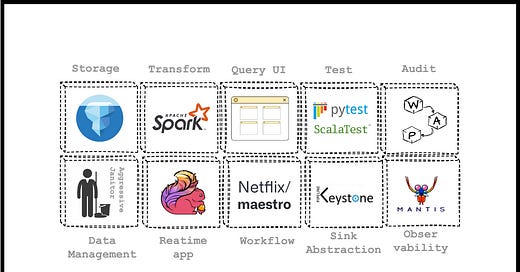

In this article, I've shared all my insights from watching Netflix's excellent tech talks. We start by looking at how Netflix develops a typical batch pipeline using Iceberg for storage, Spark for transformation logic, the WAP pattern for data auditing, and Maestro for scheduling. Then, we explore their real-time application with Apache Flink, the abstraction of real-time sinks with Keystone, and finally, Mantis for real-time observability.
References
[1] Chris Stephens, Pedro Duarte, Netflix Data Engineering Tech Talks - The Netflix Data Engineering Stack (2023)
