🚀 Data Infrastructure at Airbnb
Intro
Starting from this issue, I'm introducing a new format to GroupBy. In addition to the usual curated links, I'll be sharing a brief blog/note on my recent learnings and readings in the data/software engineering field. I'll strive to keep it concise, under 7 minutes, to respect your time.
This week is my short note after reading the article about data infrastructure at Airbnb (2016).
Reference: Data Infrastructure at Airbnb (2016)
Airbnb philosophy
The data infrastructure at Airbnb was built up by the following philosophies:
Open-source: trying to adopt the open-source system; if Airbnb builds something that they find helpful, they will contribute back to the community.
Prefer standard components and methods: Having intuition about when to build a unique solution and when to adopt an existing solution is essential.
Scalability: Airbnb had to ensure its infrastructure could scale with the growth of the data.
Solve real problems by listening to your colleagues: Empathizing with internal data users is essential.

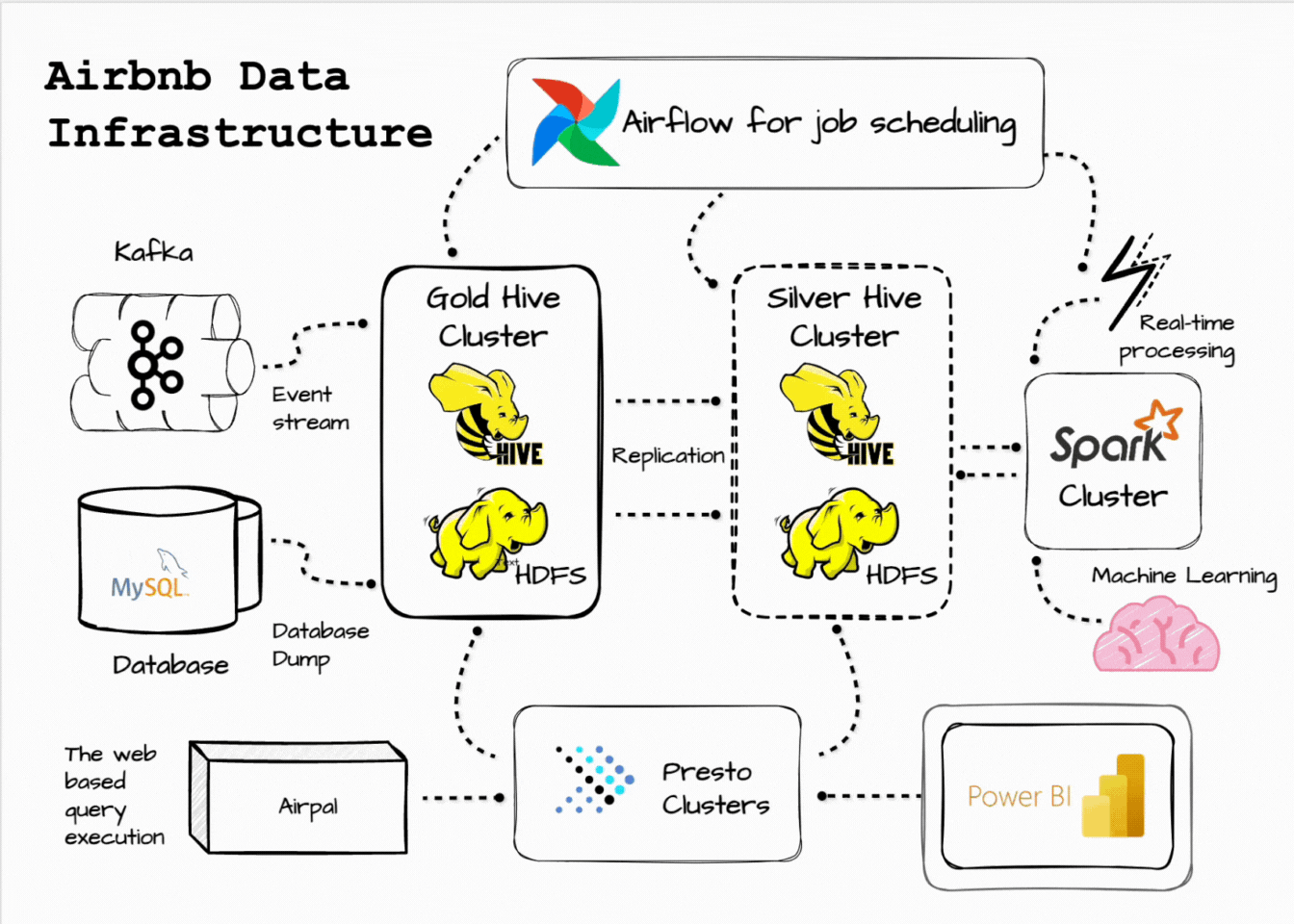

Infrastructure Overview
Data came from two sources: events from Kafka and MySQL database dumps.
This source data contains user activity event data and dimensional snapshots.
There are two Hadoop clusters: Gold and Silver. Critical jobs ran in the Gold environment, and more “relaxed” jobs ran in the Silver one.
Data in Gold is treated as a single source of truth; data can ONLY be copied from Gold to Silver.
Despite the isolation, separating into two clusters comes at the cost of data replication and keeping data in sync.
Treating Hive-managed tables as their central source and sink for data.
Using Presto for almost all ad hoc queries on Hive-managed tables.
They built a web-based query engine called Airpal backed by Presto. This is Airbnb's primary interface for users to run SQL.
They use Airflow for job scheduling.
Engineers and data scientists working on machine learning will work with Spark.
Airbnb also leverages Spark for stream processing.
Detailed Look at The Hadoop Cluster
Airbnb made a significant migration for their Hadoop Cluster. Two years before the article writing time, two sets of poorly architected clusters called Pinky and Brain were run on a set of EC2 instances running HDFS with 300 terabytes.
At the time of writing, Airbnb had two separate HDFS clusters (Gold and Silver) with 11 petabytes of data, and they also stored multiple petabytes of data in S3. Here are some problems they have overcome during the migration:
Running Hadoop on Mesos
Lacking visibility into logs and cluster health
Hadoop on Mesos could only run MapReduce version 1.
Cluster underutilization
High operational load and difficulty reasoning about the system
Solution: moving away from Mesos.
Remote reads and writes
By storing all the HDFS data in mounted EBS volumes, Airbnb sent large amounts of data over the public Amazon EC2 network for queries. → Agains the Hadoop design of local reads and writes on disks.
Moreover, they mistakenly split the data storage across three separate availability zones within a single AWS region. Each zone was designated as its own rack, causing remote reads and writes for the three replicas. → More remote data transfer → Slow performance.
Solution: having dedicated instances using local storage and running in a single availability zone.
Heterogeneous Workload on Homogeneous Machines:
There were distinct requirements for the architectural components.
Hive/Hadoop/HDFS machines required a lot of storage but didn’t need much RAM or CPU.
Presto and Spark required RAM and CPU but didn’t need much storage.
Solution: Leveraging the flexibility of EC2 instance types supported by Amazon for each component to save cost and increase resource utilization.
System Monitoring
One major issue was creating custom monitoring and alerting for the cluster. Hadoop, Hive, and HDFS are complex systems with many potential failure points. Anticipating all failure states and setting reasonable alert thresholds felt like reinventing the wheel for Airbnb.
Solutions: They signed a support contract with Cloudera to gain from their expertise in architecting and operating these large systems and to reduce the maintenance burden by using the Cloudera Manager tool.
After the migration, they were able to cut costs dramatically and, at the same time, increase awesome performance. Here are a few numbers:
Disk read/write improved from 70–150MB/sec to 400+ MB/sec
Read throughput is ~3X better
Write throughput is ~2X better
Cost is reduced by 70%
Outro
That’s all for my note this week. I decided to write a note like this to share more about things I’ve learned with you guys.
Through this week's note, I hope to help you look closely into the internal infrastructure of Airbnb. Now it’s time for some cool links I found last week.
